Hello,
I really need some help, here. Yesterday my friend and I replaced cables on my Reflex Timberwolf bow. Everything went fine but after trying to shoot I noticed that my bottom cam is hitting bus cable. I have no idea what to do. All cables I took are same as in tune chart for my bow. What should i do?
Peroneus is offline
Old 04-11-2010, 07:13 AM
  #2
Nontypical Buck

halfbakedi420's Avatar

Join Date: Oct 2007
Location: central and east texas
Posts: 4,894
Default

gotta pic?
halfbakedi420 is offline
Old 04-11-2010, 07:17 AM
  #3
Spike
Thread Starter

Join Date: Apr 2010
Posts: 3
Default

nope, but it happens just after full draw
Peroneus is offline
Old 04-11-2010, 08:23 AM
  #4
Nontypical Buck

halfbakedi420's Avatar

Join Date: Oct 2007
Location: central and east texas
Posts: 4,894
Default

after full draw...sounds like your string may be to short? or your over drawing? if it happens just after full draw.
halfbakedi420 is offline
Old 04-11-2010, 08:30 AM
  #5
Nontypical Buck

Join Date: Feb 2003
Location: Pa.
Posts: 1,062
Default

Did you measure the string to make sure it was the correct length before you put it on?
Big John is offline
Old 04-11-2010, 09:47 AM
  #6
Nontypical Buck

halfbakedi420's Avatar

Join Date: Oct 2007
Location: central and east texas
Posts: 4,894
Default

and, the old one can stretch. so maybe your used to the stretched one, not the new one.
halfbakedi420 is offline
Old 04-11-2010, 09:56 AM
  #7
Spike
Thread Starter

Join Date: Apr 2010
Posts: 3
Default

sure i did measured it and they are same. Here is pictures of my uper and bottom cams. What should i do to correct bottom cam position? bus cable is far from referance hole.
help with changing cables-bottom-cam.jpg

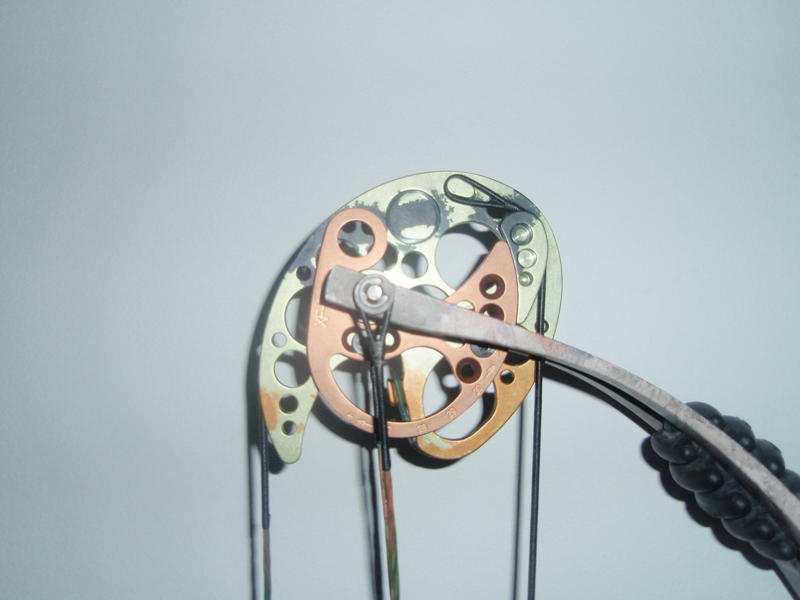

help with changing cables-upper-cam.jpg
Peroneus is offline
Old 04-11-2010, 10:48 AM
  #8
Nontypical Buck

halfbakedi420's Avatar

Join Date: Oct 2007
Location: central and east texas
Posts: 4,894
Default

pop into th chat room at bout 6pm central to about 9-10pm central time.
halfbakedi420 is offline
Old 04-12-2010, 03:22 PM
  #9
Nontypical Buck

BGfisher's Avatar

Join Date: Feb 2003
Location: Middletown PA United States
Posts: 3,625
Default

Bottom cam is over rotated at rest. It's easy to see without even blowing the pictures up. The cable to the lower cam is too short. If you like the draw length where it's at you need to remove some twists from that cable and add some to the cable going to the top cam. Looking at it I'd start with about 3 twists each. Try to use some hole or something on the cam and referrence it to the limb. Get them close to the same and then draw the bow. When you get it right both cams should stop at the same time. Right now they are out of sync.
