Fletching orientation

Old 02-06-2014, 11:05 AM
  #11
Spike

Join Date: Feb 2014
Location: North East
Posts: 1
Default

I got a dozen maxima reds done in a western style fletching with 2'' blazers. Been shooting them all yr and to be honest i don't really see much of a difference unless you are shooting out past 50 yds in crosswinds. That is when i noticed a difference. They seem to recover faster and fly more stable out to 50yd and beyond. I actually hate the way they look but i have to admit ( speaking for myself ) they really seem to work at longer distances and in strong crosswinds. All i can say is give em a try!
Mathews Heli-m, 27.5 , 65#, Quad HDX, Axcel Armortech HD, Maxima Reds , Ktech stab, Carter release..

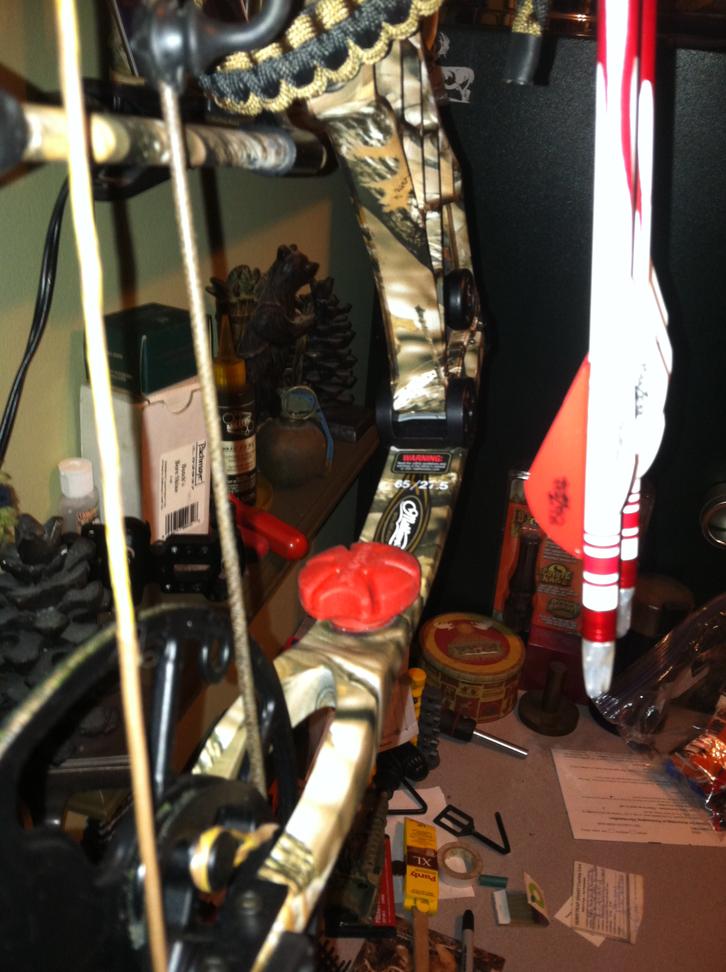

Attached Thumbnails Fletching orientation-022.jpg   Fletching orientation-024.jpg
Bowhunting junkie is offline
Old 02-06-2014, 01:04 PM
  #12
Nontypical Buck

Nomercy448's Avatar

Join Date: Oct 2009
Location: Kansas
Posts: 3,898
Default

Seen a few guys do it, played with it a bit myself just to see what difference it makes, since the SCIENCE BEHIND IT doesn't support what is claimed about it.

No benefit. It's hype. In certain instances, it very likely can destabilize your arrow as much or worse than it could ever benefit the flight. I haven't found any well-founded science for why it actually would benefit, although I've found plenty that proves it would hurt your flight.

Honest opinion is that it's voodoo. If you believe that something gives you an edge, it can, even if it really doesn't. If you believe someone else something knows something you don't, it gives them an edge, even if they really don't.

Pin stripes win baseball games.
Nomercy448 is offline
Old 02-19-2014, 05:12 PM
  #13
BTM
Fork Horn

Join Date: Feb 2003
Location: Altadena CA
Posts: 494
Default

I can imagine someone's already done a scientific comparison with a shooting machine. If not, someone should do so in order to settle the matter objectively.
BTM is offline
Old 02-20-2014, 07:18 AM
  #14
Nontypical Buck

Nomercy448's Avatar

Join Date: Oct 2009
Location: Kansas
Posts: 3,898
Default

I think for someone to get motivated to test this out of a hooter-shooter, it'd need to have sound science behind it, but it doesn't.

From a coaxial airflow standpoint (i.e. down the shaft), there's no difference in drag, significant at least, on each vane, or the triplet of vanes. They're still the same profile, still impart the same drag.

BUT, that does produce an imbalanced torque at the broadhead (or rather center of mass). That ONE vane being out of place will create a translational force perpendicular to the shaft at a position CLOSER to the tip than the other vanes, which promotes INSTABIILTY. Seems like instability is the opposite of what we're going for.

From a rotational stability standpoint, now we're talking about an unbalanced rotor. Common sense that an unbalanced fan isn't stable, we've all heard that whirring and felt the vibration on a cheap fan with unbalanced blades.

Now let's talk about crosswinds. Crosswinds only care about profile. If the vanes are spinning, now you have a LONGER overall profile standing up in the wind, aka, a bigger sail to throw your tail off course. If they're NOT spinning, then that one odd-ball will catch the wind differently than the other vanes, which will produce a random result, based on which direction the odd-ball vane is pointing relative to the wind. Since it's closer to the front, it will impart a lower torque in the wind than the other vanes, so if it's clocked up with the others clocked down, a crosswind will actually create two types of torque on the arrow: 1) rotational torque - it'll encourage the arrow to roll or spin towards the farther back vane, 2) levering torque against the center of balance - it'll push the tail more dramatically based on the further back vane, which starts out as a linear movement, but translates into a rotational movement since the arrow is cylindrical. And then you're back to the case above about spinning arrows producing MORE tail drag due to increased side profile.

So what theory would experimentation be proving? Because the science doesn't support that it would be beneficial.

What I expect is happening is that someone does it, someone that shot very well, and someone else thought it was giving that person an advantage. In the height of a season, I can stack sticks bareshaft at 40yrds, and I know guys that can do so at much longer ranges. That really tells me it doesn't matter much what vanes I use for anything shorter than 40yrds, I just need vanes that won't screw up my arrow flight. But does that mean that bareshaft would be the best method for 100yrd archery? No, it's inclusive, not exclusive. It only means that bareshaft DOES shoot well at 40yrds. Off-set cockvanes also DO shoot well at 40yrds (did for me), but that doesn't mean they're the best. It just means you're not asking very much from the arrows yet. At longer ranges when things start to get hairy for arrow stability, that's when symmetry in the tail really comes into play, and off-set vanes would give themselves away as "something different, but not something better".
Nomercy448 is offline
Old 05-19-2014, 11:35 PM
  #15
Nontypical Buck

Join Date: Oct 2011
Location: PA
Posts: 1,778
Default

///////////////////////
Tundra10 is offline
