Encore Breech Plug

Black Powder Ask opinions of other hunters on new technology, gear, and the methods of blackpowder hunting.

Encore Breech Plug

Old 01-06-2021, 02:51 PM
  #1
Boone & Crockett
Thread Starter

bronko22000's Avatar

Join Date: Jan 2004
Location: Eastern PA
Posts: 11,968
Default Encore Breech Plug

I got some feedback on my other post on my Encore pistol range results but I thought I'd start a new thread more focused on the topic.
I was having some delayed ignition using BH209 on my outing. Zero delays with Alliant Black MZ.
The BP on my Encore has the hex head for installation/removal and the front face is slightly concaved. Hubby stated in my other thread that they had a new design that had a cupped face. I can't see any images on line about this type. All the pic show are the back end of the BP and not the end that contacts the powder.
Would it improve ignition if I were to bore out a "cup" in the face of the BP?
bronko22000 is online now
Old 01-06-2021, 03:02 PM
  #2
Nontypical Buck

Join Date: Nov 2014
Posts: 2,314
Default

can you post a picture of your's?

that might help id what you have as to what is now being given out with the guns!


if I recall on the one's I had, (its been 10 yrs or so)
the difference I had in the one's I got from TC< there were different depths of the face concave, how deep they were, and then the cone shape was different on some as well
I also had some that had overall shorter lengths and amount of threads too!
as again I went back and forth with TC, as we went nuts trying to get mine to shoot(I think I went thru like 4-5 barrels from TC, as well as a good 6-8 breech plugs)
when I sold gun I gave new owners all items!
but MIGHT have 1-2 breech plugs , I'll have to look?
as I even had a few custom made to try different idea's
mrbb is offline
Old 01-06-2021, 06:10 PM
  #3
Boone & Crockett
Thread Starter

bronko22000's Avatar

Join Date: Jan 2004
Location: Eastern PA
Posts: 11,968
Default

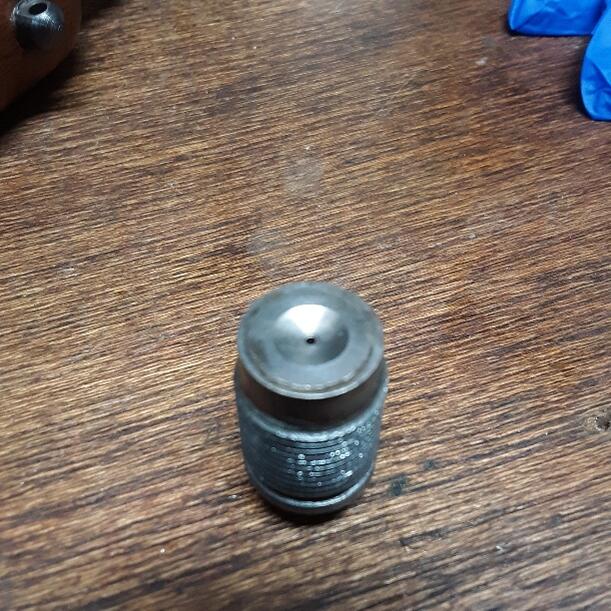

Here you go mrbb. I hope it helps. Any advice will be taken. If you think deepening the "pocket" on the face of the BP would help I could use some grinding compound and work it down. I could even make it a bit smaller in diameter to concentrate the flame in the center.
Attached Thumbnails Encore Breech Plug-breech-plug.jpg

Last edited by bronko22000; 01-06-2021 at 06:13 PM.
bronko22000 is online now
Old 01-06-2021, 06:16 PM
  #4
Typical Buck

hubby11's Avatar

Join Date: Apr 2009
Location: Clifton, VA
Posts: 814
Default

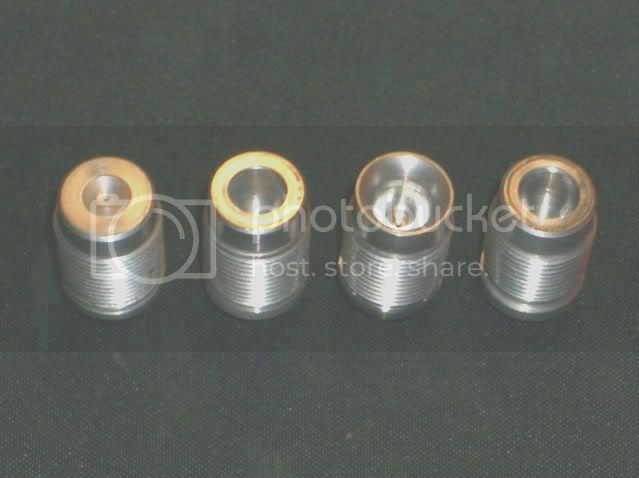

Here is a pic of diff plugs. From left, #2 and #4 (not sure if there is a difference) are the most common and work well with all powders, including BH209. #1 likely has problems with BH209, my guess is #3, with its narrow edges, can have problems with pellets. Credit to Sabotloader, I nicked the pic off one of his posts.
Attached Thumbnails Encore Breech Plug-diff-omega-plugs.jpg

Last edited by hubby11; 01-07-2021 at 12:41 PM. Reason: clarity
hubby11 is offline
Old 01-07-2021, 07:54 AM
  #5
Boone & Crockett
Thread Starter

bronko22000's Avatar

Join Date: Jan 2004
Location: Eastern PA
Posts: 11,968
Default

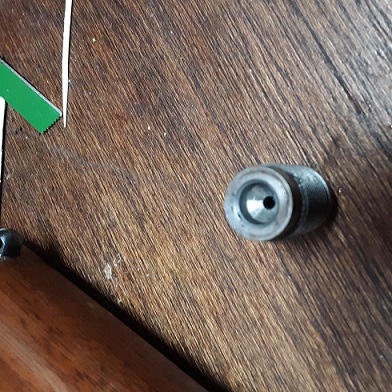

Thanks Hubby (boy it seems weird calling you that). After looking at thatg pic I decided to modify my BP. It only took about 45 mins with the drill press a bit and then a hand drill and some grinding compound. It should work good now. Next outing will see. Here is the before and after.
Attached Thumbnails Encore Breech Plug-breech-plug.jpg   Encore Breech Plug-modified-bp.jpg

Last edited by bronko22000; 01-07-2021 at 08:49 AM.
bronko22000 is online now
Old 01-07-2021, 11:41 AM
  #6
Giant Nontypical

Gm54-120's Avatar

Join Date: Mar 2010
Posts: 5,452
Default

So now you have a massive flash hole in your plug. It needs a Savage type vent liner and a 5/32 flash channel. A flash HOLE that large is a primer rupture waiting to happen. Anything over a .036" hole and a breech plug is toast.

You even responded to the thread on how Ron does them. Process is the same for the old style TC hex head plug.
CVA Hex Breechplug Modification

Last edited by Gm54-120; 01-07-2021 at 11:53 AM.
Gm54-120 is offline
Old 01-07-2021, 01:41 PM
  #7
Boone & Crockett
Thread Starter

bronko22000's Avatar

Join Date: Jan 2004
Location: Eastern PA
Posts: 11,968
Default

Gm that flash hole is only .035". For some reason it looks bigger in the pic. I know because I just bored ot out yesterday
bronko22000 is online now
Old 01-07-2021, 01:46 PM
  #8
Nontypical Buck

Join Date: Nov 2014
Posts: 2,314
Default

yes I think that is a bad idea on opening up the flash hole there, it allows gases to go both ways and coming back at you can be dangerous

when I had a few custom plugs made(by my gun smiths trying to find a way to get gun to shoot)
we did a slightly larger flash hole on the bore side, just a little to get more a flare on things as it left the plug into the powder charge
DIDN"T help me at all, or sure didn;t notice any difference in anything
but again, out o ALL my plugs and I had a bunch, I never had issues with delayed charges

I however was also pulling breech plug about every dozen shots or so, and cleaning flash hole
so, things always went off instantly as they should!
I do recall some primers were WAY dirtier than others
its been so long I honestly don;'t recall what one's were the cleanest and what I settled on
as between me, Thompson center and two custom rifle builder that always gave it a go trying, we went thru about every combination that existed

SO if it was me, I'd start with a NEW breech plug here to be SAFE
and from there try some NEW primers, make sure there fresh and dry fire off some primers of a few brands and see what one's leave your flash hole the cleanest(also check chambers for how dirty just a primer charge is!(no charge in barrel here, just firing off primers and inspecting things!
and then maybe stick with the one that seems to keep flash hole the cleanest!

and then once that is figured out, start shooting things again(making sure charged are seated well and see if any better

Also, any chance the hang fires are primer/firing pin related?
did you save any to see if lighter impacts/dents on primers?
mrbb is offline
Old 01-07-2021, 03:54 PM
  #9
Giant Nontypical

Gm54-120's Avatar

Join Date: Mar 2010
Posts: 5,452
Default

The current design Omega/Encore breech plug works just fine shooting BH209 even with a standard Win209.
Gm54-120 is offline
Old 01-08-2021, 09:42 AM
  #10
Boone & Crockett

sabotloader's Avatar

Join Date: Aug 2004
Location: Idaho
Posts: 11,612
Default

Originally Posted by bronko22000 View Post
I got some feedback on my other post on my Encore pistol range results but I thought I'd start a new thread more focused on the topic.
I was having some delayed ignition using BH209 on my outing. Zero delays with Alliant Black MZ.
The BP on my Encore has the hex head for installation/removal and the front face is slightly concaved. Hubby stated in my other thread that they had a new design that had a cupped face. I can't see any images on line about this type. All the pic show are the back end of the BP and not the end that contacts the powder.
Would it improve ignition if I were to bore out a "cup" in the face of the BP?
I know I am really late to this thread, but Bronco you never say that you have cleaned/hand driller out the flash channel under the primer cup. Hang-fires and eventually no fire can be caused by the build up of hard carbon in the flash channel of the breech plug. I really would not do anything to the flash hole.



Another thing that would/might really help that plug is to modify the the flash channel size and the the fixed flash hole to accept a screw in vent liner.

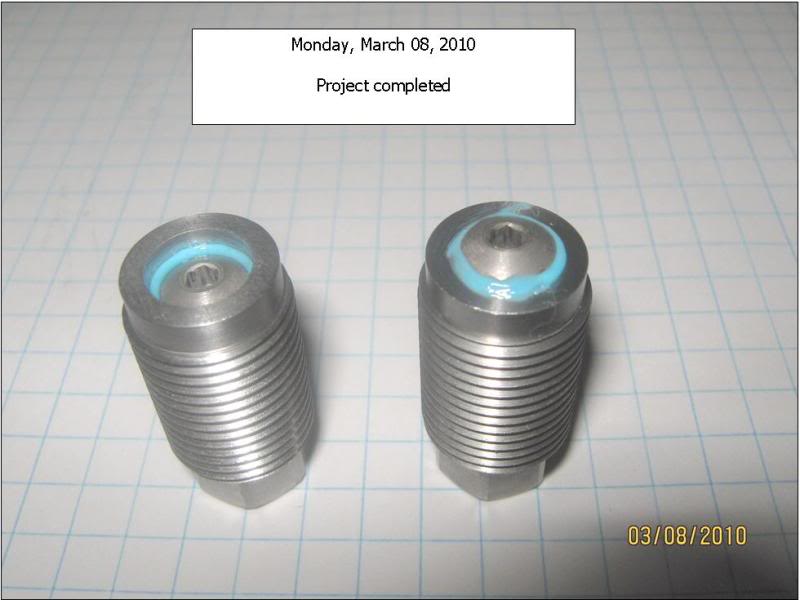

These are completed CVA plugs that I have been modified...

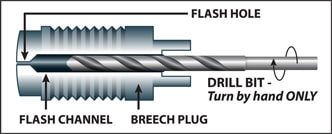

This is a picture of a regular TC BP and one that I drilled the flash channel out with a 5/32" bit.

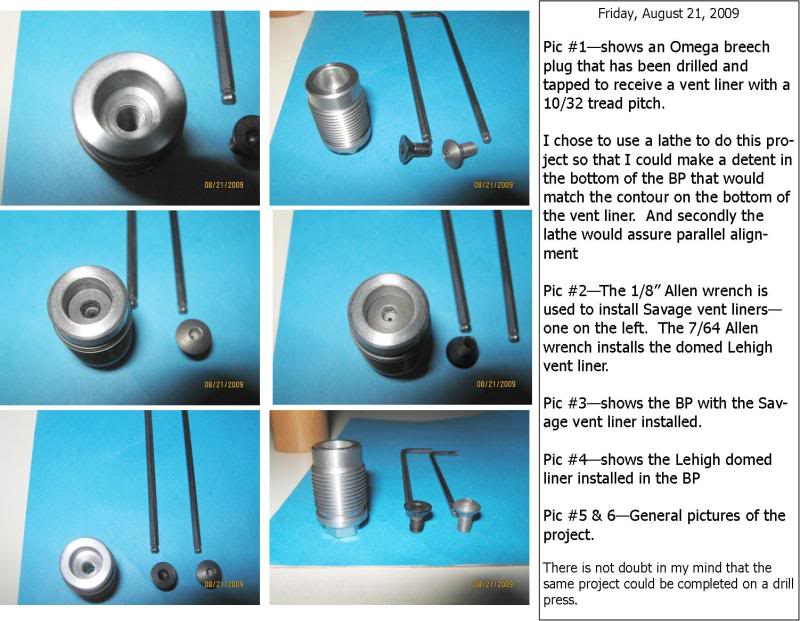

This group might give you more information. I prefer to use the domed Lehigh Vent Liners versus the flat faced Savage vent liner.



Hope some of this might help
