Default Omega breech plug

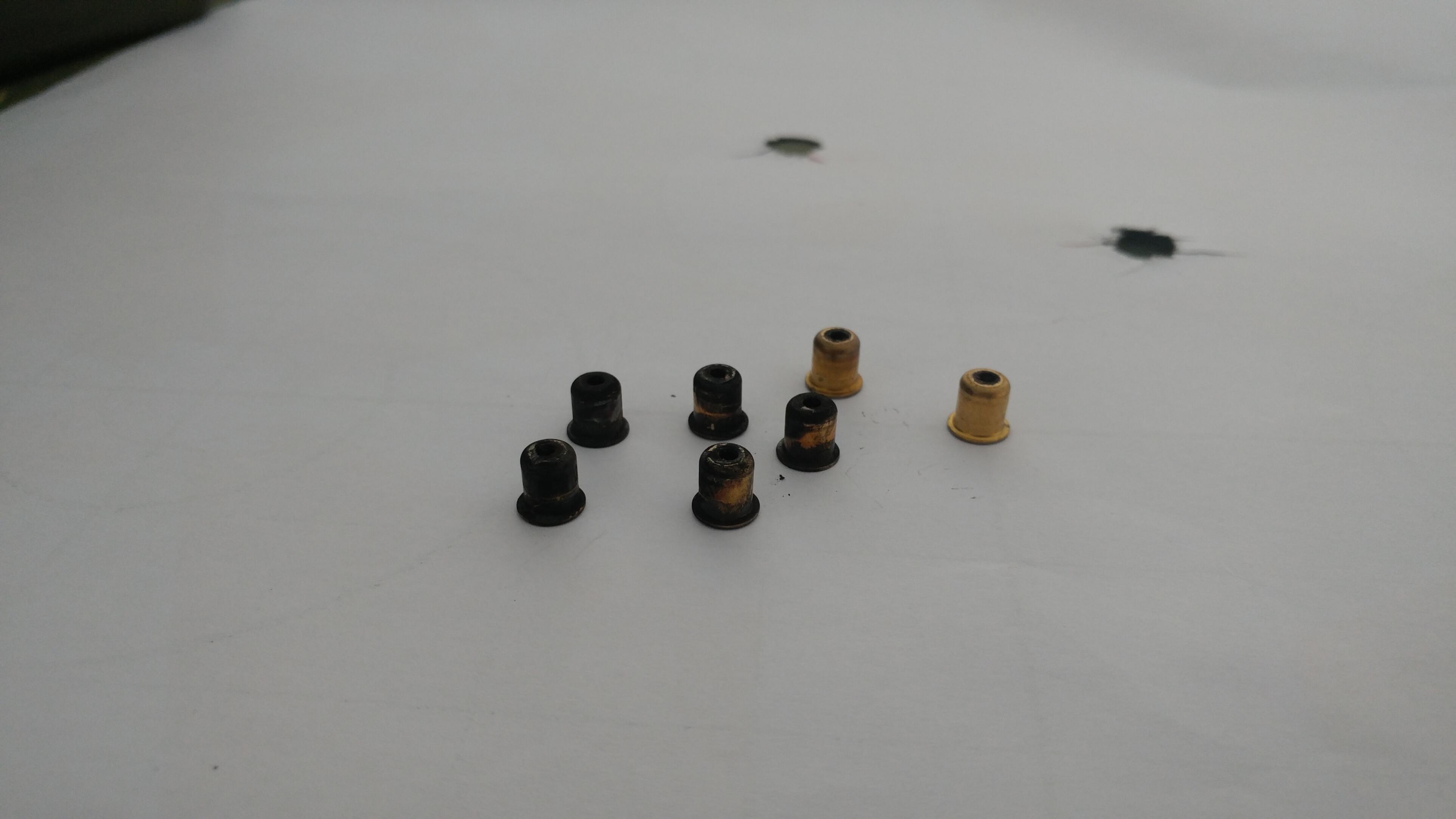

Went out to do some shooting today with both Omegaís and noticed something interesting. The STS primers (Blackhorn 209, 80 grains) in one have a lot of soot on them, this Omega Iím trying to figure out an accuracy issue as well. Will this blowback affect accuracy at all? From research the breech plug may be flame cut? Looking for options. Interesting that the other Omega using the exact same setup the primers are perfectly clean. Thoughts?
Attached Thumbnails Omega breech plug-dbe2eed1-990e-4f23-8102-49b98f241bdc.jpeg

Last edited by Omega218er; 12-15-2019 at 03:04 PM.
Omega218er is offline
Old 12-16-2019, 07:05 AM
  #2
Fork Horn

BuckDoeHunter's Avatar

Join Date: Jun 2012
Posts: 195
Default

How's the flash channel? Have you cleaned it out with a drill bit?
https://www.blackhorn209.com/specs/b...plug-cleaning/
BuckDoeHunter is offline
Old 12-16-2019, 08:35 AM
  #3
Nontypical Buck

Join Date: Nov 2014
Posts: 2,744
Default

real quick accuracy deal, is swap breech plugs and see if accuracy issue's follow! or things change
IMO< YES a breech plug can cause/alter accuracy, as can many other things
from just a plain old BAD batch of primers to powder, to heads, to you name it, things all have to work repetitively to be consistent and accurate!
mrbb is offline
Old 12-16-2019, 01:31 PM
  #4
Spike
Thread Starter

Join Date: Dec 2014
Location: Minnesota
Posts: 84
Default

Thank you for the responses. Yes the flame channel is clear and from more research it looks like there is flame cutting on the breech plug. It really makes a mess of things...
Omega218er is offline
Old 12-17-2019, 05:01 AM
  #5
Giant Nontypical

Gm54-120's Avatar

Join Date: Mar 2010
Posts: 5,533
Default

Just a FYI

Rem STS primers are the shortest USA made primers
Win209s are the longest and have about the same energy as a Rem STS primer.

Measure the flash hole of your plug. If its .035 or larger its time for a new plug. Your flash CHANNEL needs to be cleaned with a 1/8th drill bit. Any other method is pretty much a waste of time trying to get out hard carbon. As flash channel volume decreases, pressure that reaches the primer increases.

Last edited by Gm54-120; 12-17-2019 at 05:08 AM.
Gm54-120 is offline
Old 12-17-2019, 09:22 AM
  #6
Fork Horn

Join Date: Sep 2016
Posts: 140
Default

Originally Posted by Gm54-120 View Post
Just a FYI

Rem STS primers are the shortest USA made primers
Win209s are the longest and have about the same energy as a Rem STS primer.

Measure the flash hole of your plug. If its .035 or larger its time for a new plug. Your flash CHANNEL needs to be cleaned with a 1/8th drill bit. Any other method is pretty much a waste of time trying to get out hard carbon. As flash channel volume decreases, pressure that reaches the primer increases.
I was cleaning my ML last night and noticed that the flash channel had a ring of carbon that was making the hole half its size. I was not seeing any accuracy or ignition issues. Actually just took a doe this weekend with it. I used a drill bit by hand and got it all cleaned out. Based on your last sentence above, this is probably why my primers were getting hard to remove.
dhasemann is offline
Old 12-17-2019, 12:11 PM
  #7
Nontypical Buck

Join Date: Oct 2013
Location: Marriottsville, Maryland
Posts: 1,058
Default

I depend on the reliable Winchester 209 primers for my Omega. Jury rig the 1/8 drill bit on a handle.

BTW...I heard from a shooter at our range last week --- That Thompson Center is not selling any parts for their past muzzleloaders --- Which includes the Omega.
Erno86 is offline
Old 12-17-2019, 12:20 PM
  #8
Giant Nontypical

Gm54-120's Avatar

Join Date: Mar 2010
Posts: 5,533
Default

No need to "jury" rig anything. A hex shank bit in a nut driver handle works great. I got a cheap $15 Wheeler screwdriver set with me all the time but all you need is a 1/4" nut driver. Harbor Freight has el cheapo 1/4" rachets that work well too for like $3.
https://www.harborfreight.com/8-piec...ver-92630.html
Gm54-120 is offline
Old 01-02-2020, 08:05 PM
  #9
Fork Horn

Join Date: Apr 2019
Location: Southern NH
Posts: 398
Default

Using a drill bit will work but will eventually ruin your breech plug.
Thompson Center makes a kit for it that works better than the drill bit
Its a breech brush and fire channel breech brush combo kit.
I bought mine on Amazon for 6 bucks a couple months ago. I could not believe
how much carbon I scraped out of the flash channel on the breech plug. Right now they are out of stock
except for the 3rd party sellers that want 3 times as much for it. Wait till they come back in stock for 6 bucks.
Its called a Thompson Center 9508 breech plug and fire channel cleaning brush kit.
I use a can of compressed air to blow out the scraped off carbon while brushing
I also liked the idea on another thread by a member here that used a steam cleaner to blow out the flash channel.
SportsmanNH is offline
Old 01-03-2020, 11:24 AM
  #10
Giant Nontypical

Gm54-120's Avatar

Join Date: Mar 2010
Posts: 5,533
Default

No it wont. You wont hurt a thing using the bit by hand just the way Western says to clean your flash channel. Ive been doing it the same way since around 2010.

https://www.blackhorn209.com/specs/b...plug-cleaning/

Last edited by Gm54-120; 01-03-2020 at 11:33 AM.
