Cutting arrow with chop saw?
#4
Giant Nontypical
Join Date: Dec 2004
Location: Ohio
Posts: 7,876
6500? Not familiar wth a saw like that, 3500 but not 6500. I don't even know what blades are used for it. A 3500 with a good 40 T thin Kerf carbide blade and a backer board works flawlessly. Been doing it that way for years.
Be very sure what ever blade you stick in that thing can turn at 6500, most standard blades can not and serious injury will most likely occur.
Be very sure what ever blade you stick in that thing can turn at 6500, most standard blades can not and serious injury will most likely occur.
#6
What ever you use invest in a G5 A.S.D. (Arrow Squaring Device) A very important tool for making your own arrows.
http://www.youtube.com/watch?v=LeBtY4nz8sE
http://www.youtube.com/watch?v=LeBtY4nz8sE
Last edited by glockman55; 09-24-2009 at 04:38 AM.
#7
Nontypical Buck
Join Date: Feb 2003
Location: Eastern PA USA
Posts: 1,398
cutting disk?

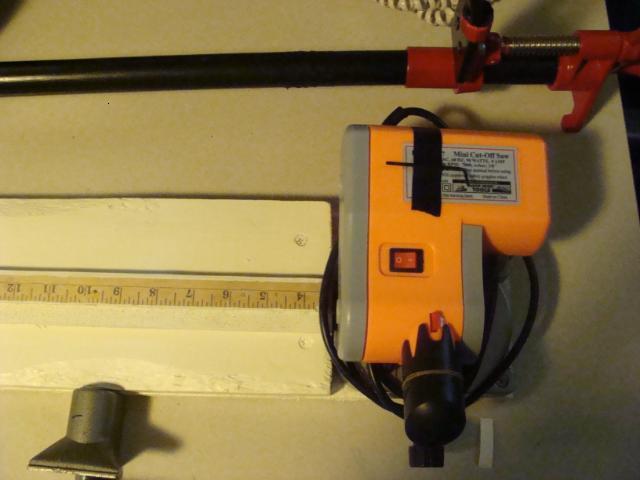

When I tried to use the Harbor Freight saw, I had problems with the disk that came with the saw. I did better with a 3" X 1/32" disk, but I don't know if it would hold up to 6400 rpm. At that speed, you should be able to make a 1/16" disk work. I had quite a bit of trouble with the Harbor Freight saw leaving long whiskers on the down side when trying to use it as a chop saw. I have had much more success using a Dremel tool with a flex shaft, and using a 1.5" diamond wheel disk. It cuts much better, and much cleaner than the HF saw did. I has much more power. I just had to make a jig to adjust the arrow length, and make sure the arrow was solidly in a grooved guard to prevent it from angling into the blade too much. The G5 ASD is a great tool to make sure the ends are squared and trued up. I have also used a .243 Winchester case neck trimmer to square up the ends on standard ICS carbon shafts.
