Lehigh 240g Prototype

Black Powder Ask opinions of other hunters on new technology, gear, and the methods of blackpowder hunting.

Lehigh 240g Prototype

Old 05-20-2017, 09:50 AM
  #1
Nontypical Buck
Thread Starter

Join Date: Aug 2008
Location: Rapid City, South Dakota
Posts: 3,732
Default Lehigh 240g Prototype

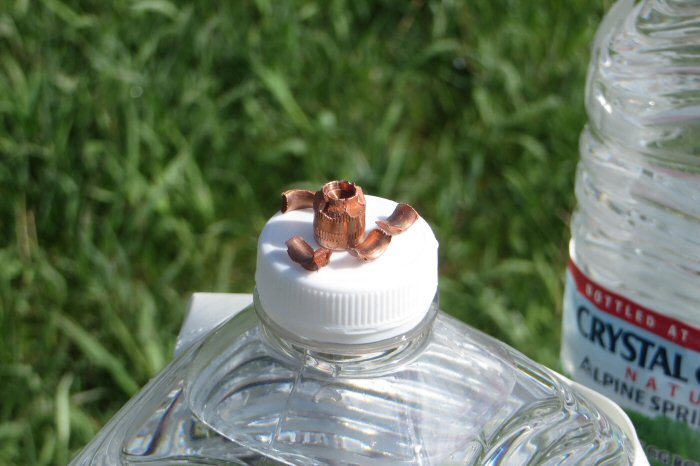

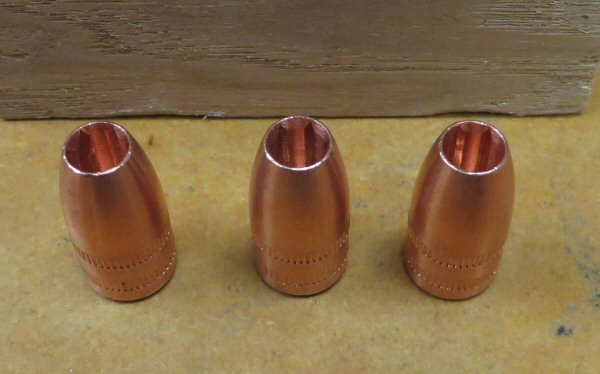

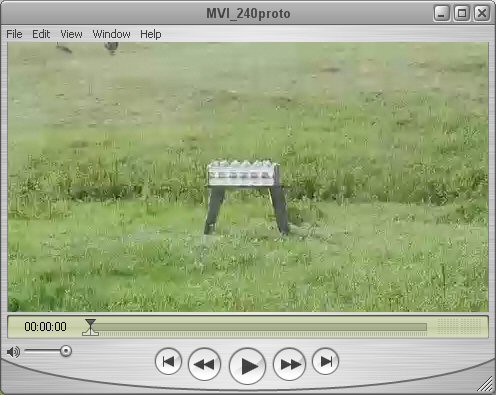

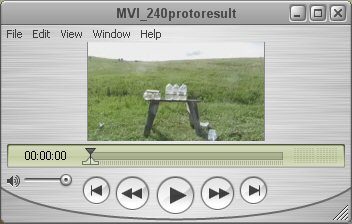

Tom sent these prototype bullet for us to look at. They are 0.452", and weigh 240 grain. They were shot into the stack of carpet, plywood, water jugs, and phone books on the back of the horse. Powder charge was 50 grain Blackhorn; the trap was out 25 yard.































____________
ronlaughlin is offline
Old 05-20-2017, 10:06 AM
  #2
Dominant Buck

cayugad's Avatar

Join Date: Feb 2003
Location: Wisconsin
Posts: 21,193
Default

It looks like it worked fine. And with only 50 grains of powder. Think if you'd of really pushed that thing.
cayugad is offline
Old 05-20-2017, 10:25 AM
  #3
Giant Nontypical

Muley Hunter's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 9,556
Default

What's the difference? Copper instead of brass?
Muley Hunter is offline
Old 05-22-2017, 10:27 AM
  #4
Nontypical Buck
Thread Starter

Join Date: Aug 2008
Location: Rapid City, South Dakota
Posts: 3,732
Default

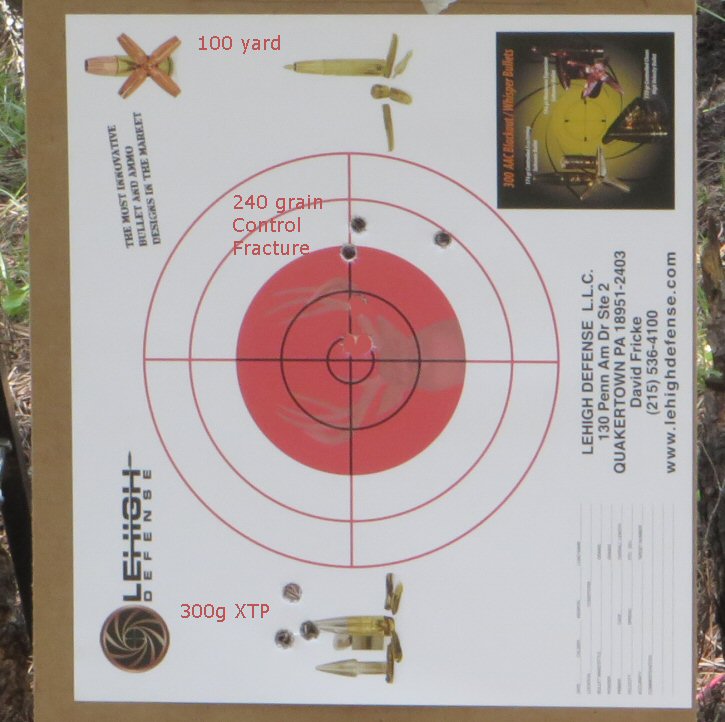

After testing these bullet for terminal performance, there were three left. This morning the intent was to test them for accuracy. There was quite a breeze, and i almost aborted. What i tried to do was trigger between gusts. The load was 60 (weighed) grain Blackhorn, crush rib sabot, W209 primer. For comparison purposes, three 300g XTP were shot below. I want to say the bullet that flew right did so because of a wind gust; right or wrong.
























_________________
ronlaughlin is offline
Old 05-22-2017, 11:02 AM
  #5
Nontypical Buck

Join Date: Mar 2009
Location: Saxonburg Pa
Posts: 3,902
Default

This was one of my groups with it. Perfect morning and good temp outside.

Grouse45 is offline
Old 05-24-2017, 08:08 AM
  #6
Typical Buck

Join Date: Sep 2008
Location: Orange County, Virginia....
Posts: 556
Default

Nice group Grouse!
mackesr is offline
Old 06-01-2017, 06:37 AM
  #7
Fork Horn

GoexBlackhorn's Avatar

Join Date: Dec 2015
Location: Southeast Michigan
Posts: 186
Default

Since most here use 100-120gr of Blackhorn, I'd like to see how this bullet expands (or doesn"t) using real-world powder charges, not a 12 year-old's powder charge of 50gr. Even 80-90gr would be more-in-line with avg-Joe-hunter powder charges today.

FWIW.... I'm about to purchase some Lehigh Cavitators for the wife's Keltec P32ACP. That little pistol hasn't enough balls for using hollow-point in self defense. So we've been using the hotter Fiocchi 73gr FMJs ....until I found some 32-cal research on the Cavitators. They offer a little more internal damage than the FMJs bring.

Last edited by GoexBlackhorn; 06-01-2017 at 06:39 AM.
GoexBlackhorn is offline
Old 06-01-2017, 06:43 AM
  #8
Dominant Buck

cayugad's Avatar

Join Date: Feb 2003
Location: Wisconsin
Posts: 21,193
Default

The accuracy is sure there. 120 grains of BlackHorn 209? Wow! Any idea of the velocity of that bullet with that kind of charge, Grouse? That has to be well over 2000+ fps I would guess. And it would make a heck of a hunting load with that kind of accuracy and that terminal shock it creates. To this say, my favorite hunting bullet is a 250 grain Barnes MZ. I am guessing they would act similar, other then the Leigh loosing petals.
cayugad is offline
Old 06-01-2017, 07:07 AM
  #9
Boone & Crockett

sabotloader's Avatar

Join Date: Aug 2004
Location: Idaho
Posts: 11,609
Default

Originally Posted by cayugad View Post
The accuracy is sure there. 120 grains of BlackHorn 209? Wow! Any idea of the velocity of that bullet with that kind of charge, Grouse? That has to be well over 2000+ fps I would guess. And it would make a heck of a hunting load with that kind of accuracy and that terminal shock it creates. To this say, my favorite hunting bullet is a 250 grain Barnes MZ. I am guessing they would act similar, other then the Leigh loosing petals.




Another bullet that I really think has a bright future is the .451x230 grain Lehigh. It will shoot in a 1-48 twist as well as the more modern rifles.


I took one of my grand old friends out to shoot them





And they shot really well... Shot #4 was my problem forgetting how touchy the trigger is when the set trigger is set!!!





This is the Ballistic sheet for this bullet... It should prove out to be a great deer getter! For those of us that use a 50 cal. ML.



And if Lehigh's most recent upgrade works it will really exciting...





That little silver tip could really set it apart - IF - it works as designed.



Last edited by sabotloader; 06-01-2017 at 07:09 AM.
sabotloader is offline
Old 06-01-2017, 07:19 AM
  #10
Giant Nontypical

Gm54-120's Avatar

Join Date: Mar 2010
Posts: 5,420
Default

The tipped 230s do look really cool. I hope to see Ron get his hands on some of these for jug testing. I dont really need the tip for my application. I just dont shoot far enough with the NULA to need them. Im just happy Lehigh is making a bullet that will be compatible with my twist and in a caliber that works well in its tight bore.
Gm54-120 is offline
